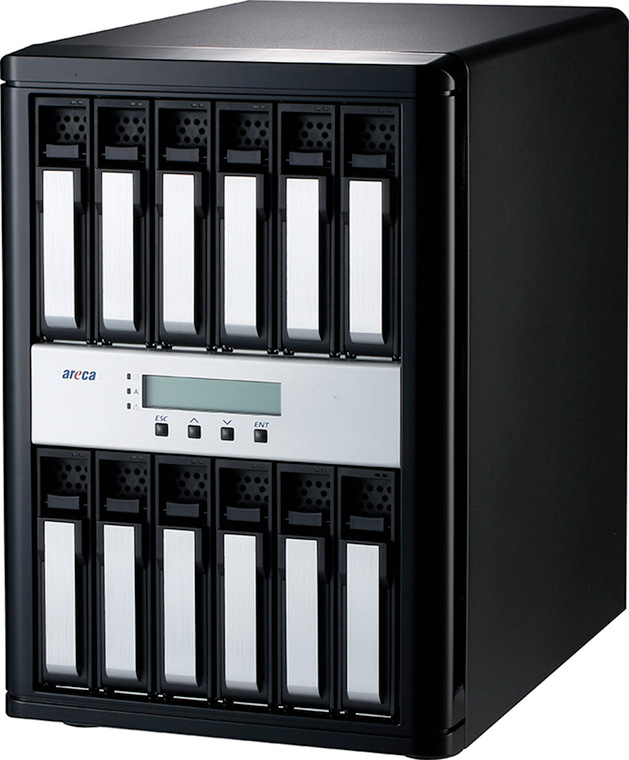

Areca ARC-4038-12 (12 Bay JBOD SAS Tower)
ArecaAreca ARC-4038-12: 12 Bays 12Gb/s SAS Tower JBOD Enclosure
- 4 x SFF-8644
- 12 Internal SAS Ports
- 1 x 6-pin UART RJ-11 connector / 1 x RJ-45 LAN connector
- In-band SAS port
- Out-of-band RS232 serial port
- CLI through RS232 serial port
- Alarm Buzzer
- External SAS port LED Indicators
- Four 12Gb/s SFF-8644 and expansion connections
- One 6Gb/s SFF-8088 SAS host (only for 8-bays enclosure)
- LED activity/status in each drive carrier
- Daisy chain capacity expansion for additional ARC-4038
- Plug & Play add capacity without shutting down
- Support CLI for configuration and environmental information
The ARC-4038 SAS-to-SAS JBOD box provides a compact external storage chassis capable of accommodating up to 8 12Gb/s, Serial-Attached SCSI (SAS) drives or 6Gb/s Serial ATA (SATA) drives. The box can support both 3.5-inch disk drives and 2.5-inch disk drives, each one contained in its individual hole on the disk carrier. The expander module on ARC-4038 is designed with an integrated ARM Cortex-R4 processor for topology management functions such as discovery, enclosure and drive management, and LED management. Each ARC-4038 compact tower JBOD supports four 12Gb/s SFF-8644 and one 6Gb/s SFF-8088 SAS host and expansion connections. Out-of-band CLI can re-define manufacture default setting on those connections. Configuration and environmental information is accessible either via in-band (SES-3.0 over SMP) or out-of-band serial port.
